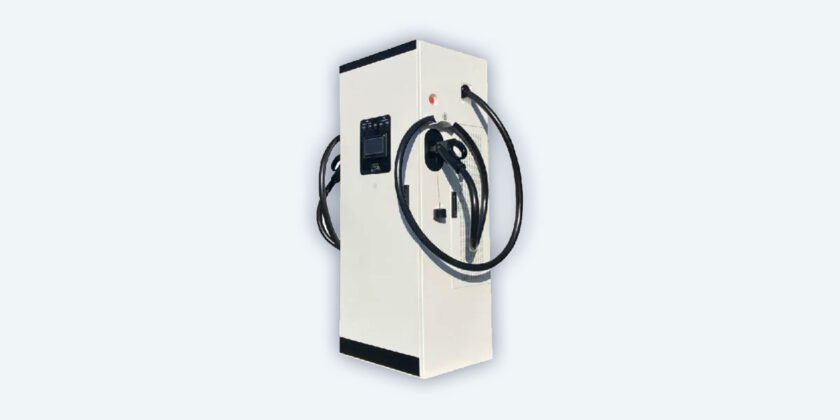

Estar EV Fast Charger 160KW
- Power Output: 160 kW (max)
- Charging Levels: DC Fast Charging (Level 3)
- Supported EV Standards: CCS1, CCS2, CHAdeMO, GB/T
- Installation Type: Floor-standing cabinet
PROS
- High power output (160 kW) supports modern EVs
- Wide compatibility (CCS, CHAdeMO, GB/T)
- Smart features: OCPP, load balancing, remote monitoring
- Rugged design, works in extreme temperatures (–40 °C to +75 °C)
- Dual gun option allows charging two vehicles
CONS
- No published price (hard to compare costs)
- Efficiency rating not clearly stated
- Certification details missing
- Large and heavy (floor-standing only, no wall option)
- Limited availability of after-sales support outside China
recommmened
Full Specifications
General for EV Charging Station
| Model | Estar EV Fast Charger 160 kW |
| Manufacturer | Estar (Shijiazhuang Estar New Energy) |
| Status | Available (Commercial Product) |
| Country of origin | China |
EV Charging Station Performance
| Power Output (kW) | 160 kW (max) |
| Voltage (V) | 100 V – 1000 V DC |
| Current (A) | 532 A |
| Charging Levels | DC Fast Charging (Level 3) |
| Charging Speed | Depends on EV battery capacity and acceptance rate |
Compatibility
| Connector Type(s) | Single or dual gun; 5 m cable |
| Supported EV Standards | CCS1, CCS2, CHAdeMO, GB/T |
| Vehicle Communication Protocols | OCPP 1.6J, remote monitoring, load balancing |
Electrical / Installation
| Input Power Requirements | 400 V AC ±15% | 3-Phase | 45–65 Hz |
| Onboard Conversion | AC → DC onboard |
| Cooling System | Fan-cooled (air cooling) |
Safety & Compliance
| Overcurrent Protection | Yes |
| Ground Fault Protection | Yes (insulation detection) |
| Thermal Protection | Yes (over-temperature) |
Smart Features
| Connectivity | 4G / LAN (Ethernet) |
| User Interface | Display + LED indicators + Card reader |
| Payment Options | RFID / Card swiping / Mobile app support |
| Smart Charging | Yes (remote monitoring & control) |
| Load Balancing | Supported |
| Scheduling | Backend system support |
Environmental & Physical
| Operating Temperature Range | –40 °C to +75 °C (derates above 60 °C) |
| Installation Type | Floor-standing cabinet |
| Cabin Type | 5 m standard |
| Dimensions | 700 × 600 × 1900 mm |
