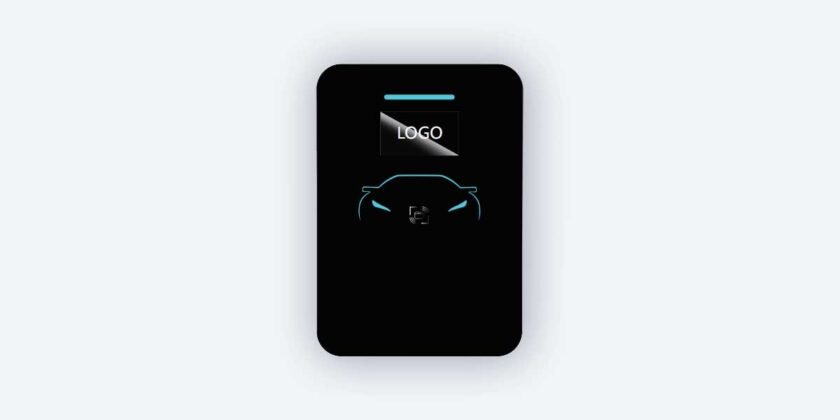

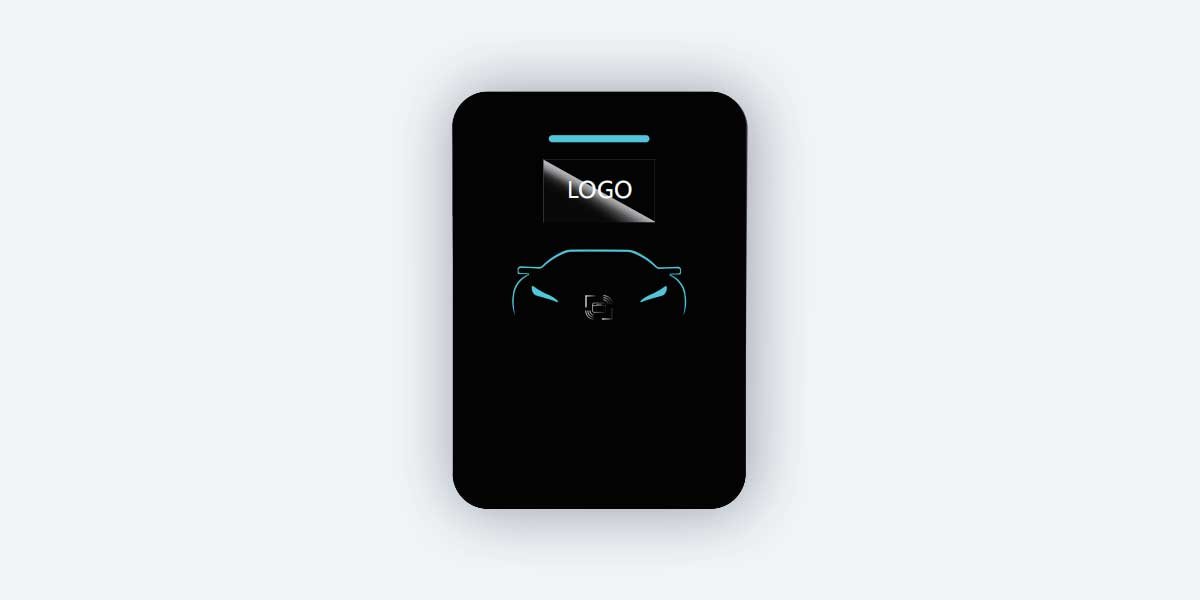

EVCOME OCPP 1.6J Smart Charging
- Power Output: 11 kW
- Charging Levels: Level 2
- Supported EV Standards: IEC Type 2, GB/T

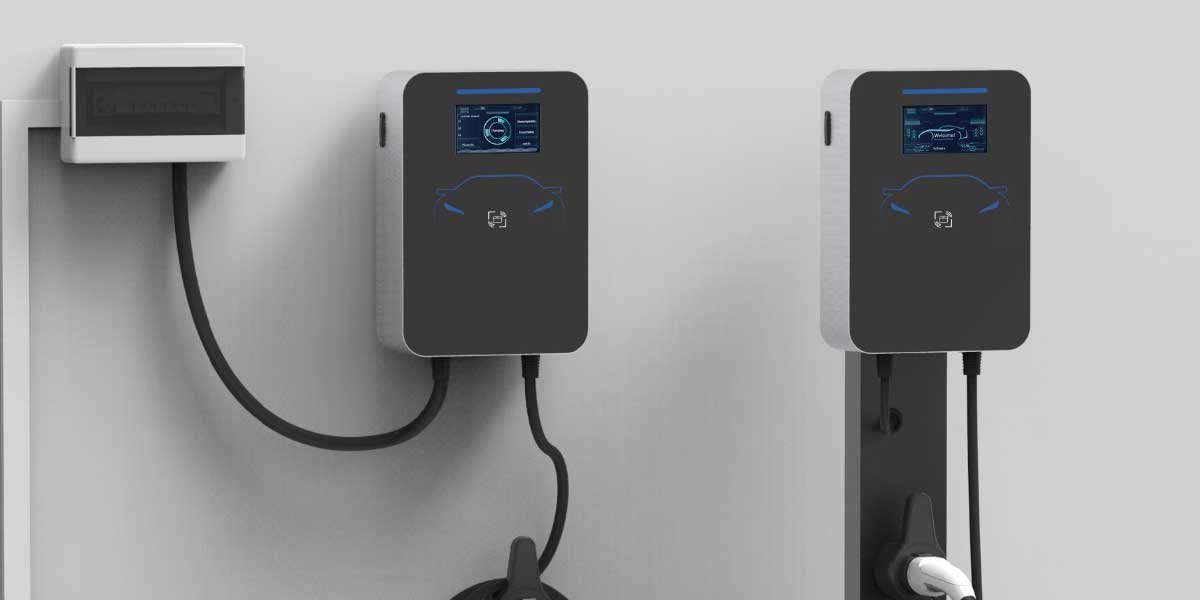

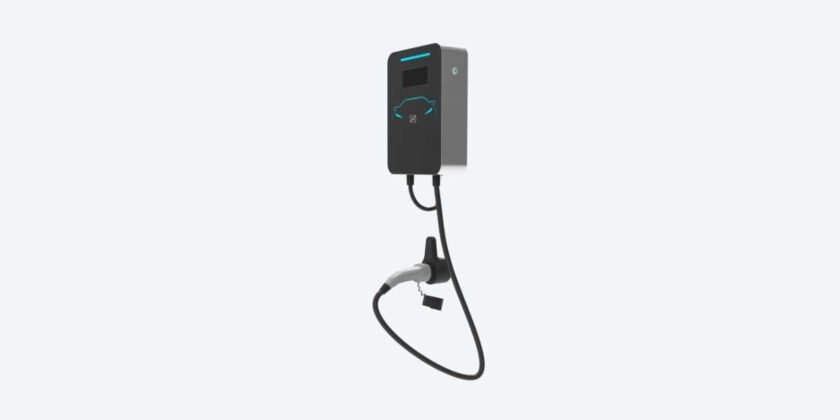

- Installation Type: Wall-mounted
PROS
- Affordable (~$200 starting price) compared to other OCPP-enabled chargers
- Supports OCPP 1.6J, making it compatible with most charging networks
- Available in multiple power options (7 kW, 11 kW, 22 kW)
- Smart features: WiFi, app control, scheduling, RFID, and load balancing
- IP54 rating – suitable for both indoor and semi-outdoor use
- Built-in protections: overcurrent, leakage, and thermal safety
CONS
- Limited documentation on dimensions, weight, and efficiency
- No official DC fast charging support (AC Level 2 only)
- Cable type and length options vary, not always customizable
- IP54 rating is good, but less rugged than IP65/67 outdoor units
- Support and certification details vary by market (may require verification for EU/US compliance)
recommmened
Full Specifications
General for EV Charging Station
| Model | EVCOME OCPP 1.6J Smart Charging (Wallbox) |
| Manufacturer | EVCOME (Shanghai Yingrao Technology Co., Ltd) |
| Status | Available |
| Country of origin | China |
| price | USD $200 (base, variant dependent) |
EV Charging Station Performance
| Power Output (kW) | 11 kW (other variants up to 22 kW exist) |
| Voltage (V) | 380 V (three-phase) |
| Current (A) | 16 A (22 kW version supports 32 A) |
| Charging Levels | Level 2 (AC charging) |
| Charging Speed | ~11 kWh per hour (≈ 40–50 km of range per hour, depending on EV) |
Compatibility
| Connector Type(s) | Tethered cable (PVC); Type 2 / GB/T options depending on region |
| Supported EV Standards | IEC Type 2, GB/T (configurable) |
| Vehicle Communication Protocols | OCPP 1.6J |
Electrical / Installation
| Input Power Requirements | 380 V three-phase, 16 A (11 kW) / 32 A (22 kW) |
| Onboard Conversion | AC to DC handled by EV (standard AC EVSE) |
| Cooling System | Passive (air) |
Safety & Compliance
| Overcurrent Protection | Yes |
| Ground Fault Protection | Yes (leakage detection) |
| Thermal Protection | Yes (over-temperature shutdown) |
| Certifications | CE and IEC compliance (manufacturer states full certification) |
| Standards | IEC 61851, OCPP 1.6J compatible |
Smart Features
| Connectivity | WiFi, Bluetooth (OCPP cloud support) |
| User Interface | LED indicators, optional touch display, mobile app support |
| Payment Options | RFID / IC card, app payments (commercial variant) |
| Smart Charging | Yes (via OCPP backend) |
| Load Balancing | Supported via OCPP platform |
| Scheduling | Yes (timed/reservation charging) |
Environmental & Physical
| IP Rating | IP54 (dust & splash resistant) |

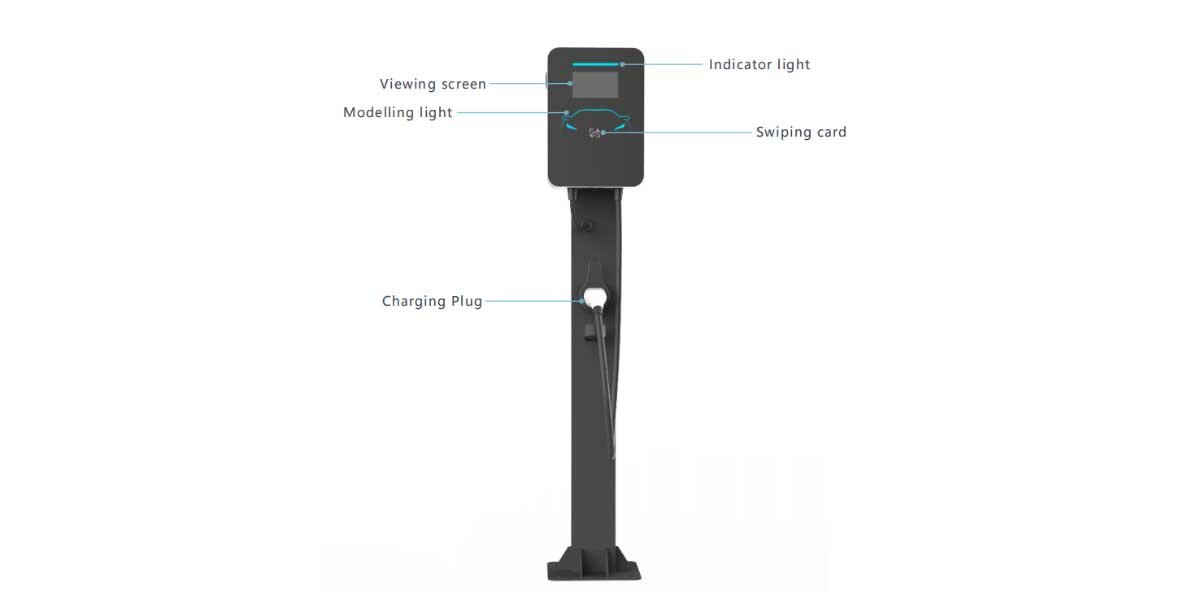

| Installation Type | Wall-mounted (floor stand optional) |
| Cabin Type | PVC tethered cable, standard lengths available (5m typical) |
