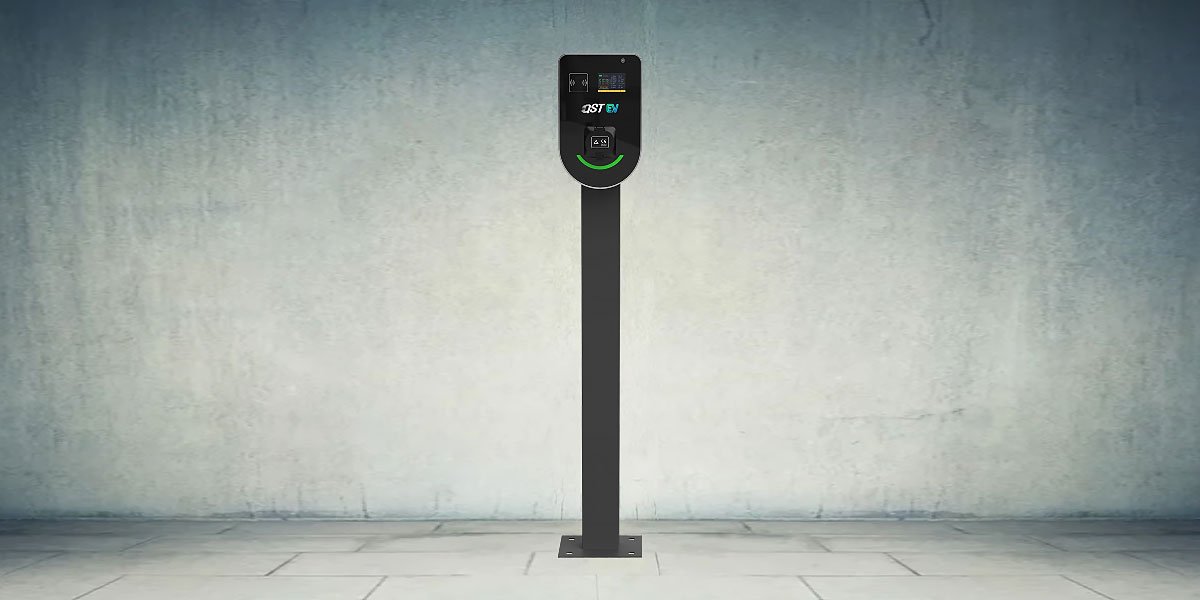

QST EVSE CHARGER QSTEV22K-C3
- Power Output: 24 kW
- Charging Levels: Level 2 (AC)
- Supported EV Standards: Type 2 AC (IEC 62196 standard)
- Installation Type: Wall-mounted / pole-mounted (fixed)
PROS
- High 24 kW AC output – faster than typical 7–11 kW chargers
- Type 2 connector – widely compatible in Europe, Asia, and Africa
- Smart features: OCPP 1.6J, WiFi/4G/Ethernet, app control, RFID support
- Certified metering (MID/PTB) for accurate billing
- Flexible installation – wall or pole mount
- Good protection (overcurrent, ground fault, thermal)
CONS
- Limited to AC charging only (not DC fast charging)
- Price not transparent – varies by distributor
- Efficiency, weight, dimensions, and cooling system not published
- Load balancing and scheduling features unclear
- May require three-phase power (not ideal for all locations)
recommmened
Full Specifications
General for EV Charging Station
| Model | QSTEV22K-C3 |
| Manufacturer | QST (QST Global Group) |
| Status | Available |
| Country of origin | China |
EV Charging Station Performance
| Power Output (kW) | 24 kW |
| Voltage (V) | 380 V |
| Current (A) | 32 A |
| Charging Levels | Level 2 (AC) |
| Charging Speed | Up to ~120 km range per hour (depending on EV efficiency) |
Compatibility
| Connector Type(s) | Type 2 (cable with Type 2 plug, 5 m length) |
| Supported EV Standards | Type 2 AC (IEC 62196 standard) |
| Vehicle Communication Protocols | OCPP 1.6J |
Electrical / Installation
| Input Power Requirements | 380 V AC, likely 3-phase, 32 A |
| Onboard Conversion | AC supply → vehicle onboard charger handles DC conversion |
Safety & Compliance
| Overcurrent Protection | Yes |
| Ground Fault Protection | Type A RCD |
| Thermal Protection | Yes (temperature monitoring) |
| Certifications | MID / PTB certified metering |
| Standards | IEC 62196, OCPP 1.6 compliance |
Smart Features
| Connectivity | WiFi, Ethernet, 4G, Bluetooth |
| User Interface | Mobile app, LED indicators, optional display |
| Payment Options | RFID, mobile app, multi-payment support |
| Smart Charging | Yes (OCPP-based remote management) |
Environmental & Physical
| IP Rating | IP55 (optional IP65) |
| Installation Type | Wall-mounted / pole-mounted (fixed) |
| Cabin Type | 5 m Type 2 cable |
