Arcfox Alpha T5 (αT5)
- Drive Type: FWD, AWD
- Type: 5-door SUV (5 seats)
- Self Driving: Semi-autonomous assistance only
- Airbags: Yes
PROS
- Long driving range for daily and highway use.
- Spacious interior and cargo capacity.
- Strong charging performance on compatible fast chargers.
CONS
- Fewer dealer and service locations outside China.
- Interior trim and tech feel basic versus premium rivals.
Arcfox Alpha T5 (αT5) is an electric SUV from the Chinese brand Arcfox. It sits in the compact to mid-size EV SUV class with a five-door body and a focus on utility and space.
The T5 uses a large battery pack that offers over 500 km of real-world range on a single charge under standard test cycles. It supports fast DC charging at rates that bring the battery from low to 80% in around 30 to 40 minutes depending on the charger and conditions.
Price sits in the mid-range for EV SUVs, higher than budget city EVs but lower than premium brands. It suits buyers who want a practical SUV with long range and family space at a moderate outlay. Alternatives include BYD Song Pro EV and Geely Geometry C. Compared to Hyundai Ioniq 5, the Alpha T5 trades some interior refinement for more cargo room.

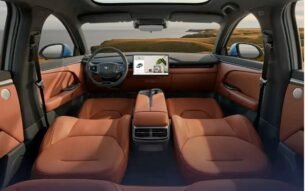

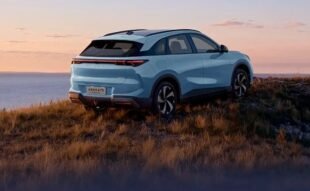

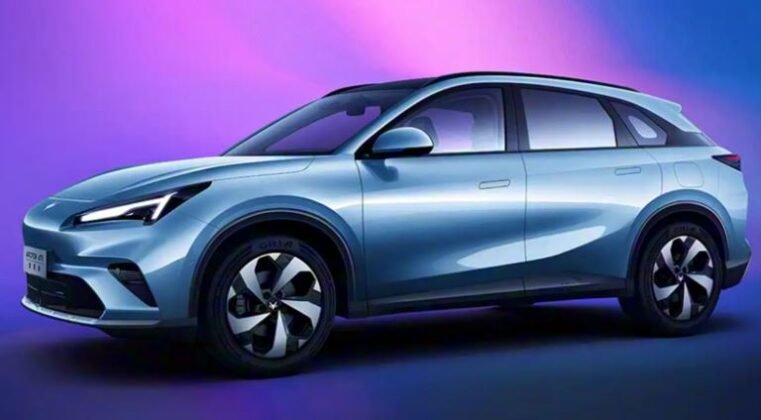

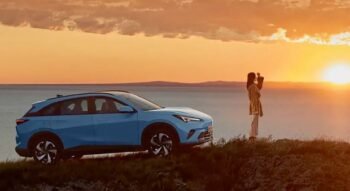

Arcfox Alpha T5 (αT5) Images
Related EV
Full Electric Vehicle Specifications
MODEL
| Available Trims / Variants | Arcfox Alpha T5 — 520 AIR, 520 PRO, 520 MAX, 660 MAX |
LAUNCH
| Reveal Date | December 2023 |
| Availability Status | In production (2024–2025) |
| Country of origin | China (BAIC / Arcfox) |
| Base Price (USD) | $16,700 – $21,700 |
BATTERY
| Battery Capacity | 65 kWh (LFP) or 79.2 kWh (NMC) |
| Battery Chemistry | LFP / Ternary Lithium |
| Range (WLTP/CLTC/EPA) | 520 – 660 km (CLTC) ≈ 320 – 410 mi (WLTP est.) |
| Energy Consumption | 13.9 kWh / 100 km |
| Heat Pump | |
| AC Charging (Max kW) | 5.6 h (7 kW) |
| DC Charging (Max kW) | 30 – 80% in ~ 18 min (800 V system) |
| Additional Notes | 800 V architecture, regenerative braking, OTA battery management |
PERFORMANCE
| Power Output (kW / hp) |
185 – 200 kW (248 – 272 HP) Single-motor FWD (AWD variant possible) |
| Torque (Nm) | 360 Nm |
| 0–100 km/h / 0-60 mph (seconds) The acceleration numbers are an easy way to compare car performance. We list either time from 0 to 100 km/h or time from 0 to 60mph, depending on which number(s) the manufacturers provide. The lower the acceleration time, the higher performance the car is. | 7.5 s |
| Top Speed (km/h / mph) | 180 km/h |
BODY
| Body Style | 5-door SUV (5 seats) |
| Platform / Architecture | Arcfox BEV architecture |
| Dimensions (L×W×H mm) | 4,690 × 1,936 × 1,650 mm |
| Drag Coefficient (Cd) | 0.245 Cd |
| Wheelbase (mm) | 2,845 mm |
| Kerb Weight (kg) | 1,975 kg |
| Wheel Size (inches) | 19- / 20-inch alloys |
| Trunk/Boot Capacity (L) | 400 – 1,546 L |
SAFETY
| Airbags (count) | Front + side + curtain (6 total est.) |
| Driver Assistance (ADAS) | L2 (Adaptive Cruise, Lane Keep, Auto Lane Change) |
| Autonomous Driving Level | Semi-autonomous assistance only |
COMFORT
| Seating Capacity | 5 (seat heating / ventilation in higher trims) |
| Roof Type | Panoramic glass (1.11 m²) |
| Bluetooth / Wi-Fi | OTA updates, voice assistant, 50 W wireless charging |
| Parking Aids | 360° cameras, parking sensors |
| Additional Notes | Ambient lighting (256 colors), rear-seat vital sign monitor |
DISPLAYS
| Centre Screen (inches) | 15.6-inch touchscreen |
| Driver's Display (inches) | Integrated (single screen layout) |
LIGHTING
INFOTAINMENT & AUDIO
TECHNOLOGY
OWNERSHIP
Note
| Additional Notes |
Specs may vary by market and trim. CLTC range figures are optimistic vs WLTP standards. |
Disclaimer Note
Specifications sourced from manufacturer data and may reflect WLTP, CLTC, or EPA test conditions. Import prices in your local are estimates based on grey-market landing costs and exclude duties, clearing fees, and local taxes. Figures are subject to change without notice. Always verify with your local importer before purchase. We can not guarantee that the information on this page is 100% correct
