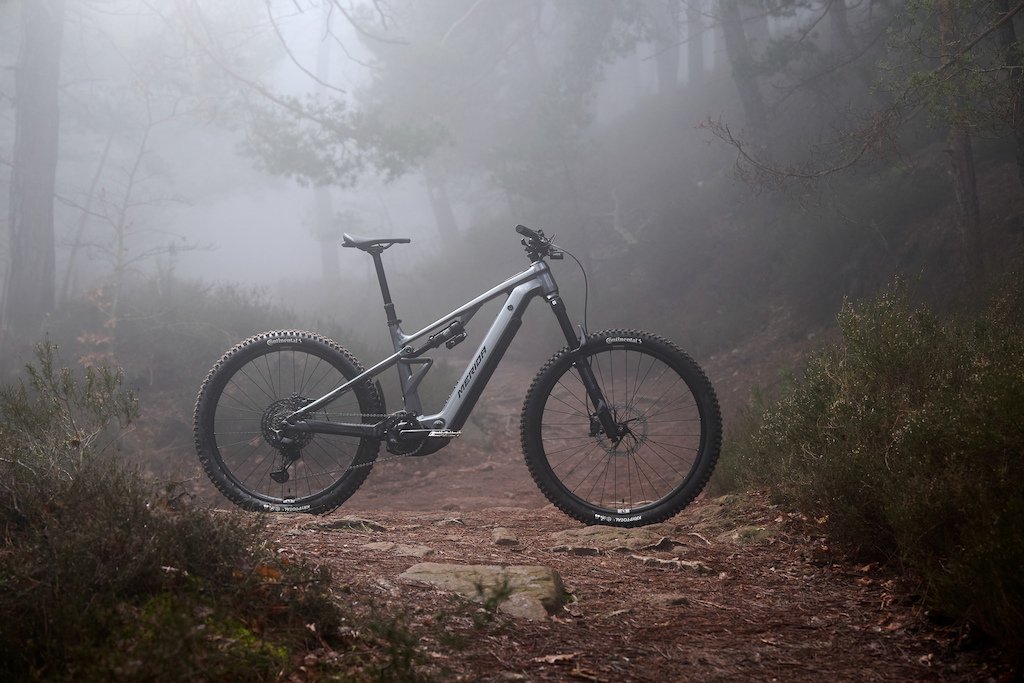

The MERIDA ETMO is an aluminum full-suspension e-MTB built around Bosch pedal assistance. It targets riders who want long-travel capability without premium pricing. The frame draws design cues from the eONE-EIGHTY while focusing on durability and cost efficiency. Travel varies by model, with 140 mm or 160 mm front and rear. Mixed wheel sizes support stability and agility across varied terrain.
Battery and Drive System
Bosch systems define the ETMO lineup.
Battery options
- 540 Wh
- 600 Wh
- 800 Wh
Drive unit options
- Bosch Performance Line CX
- Bosch Performance Line PX
This range supports different budgets and riding priorities. CX models prioritize torque and climbing response. PX models reduce entry cost while retaining Bosch reliability.

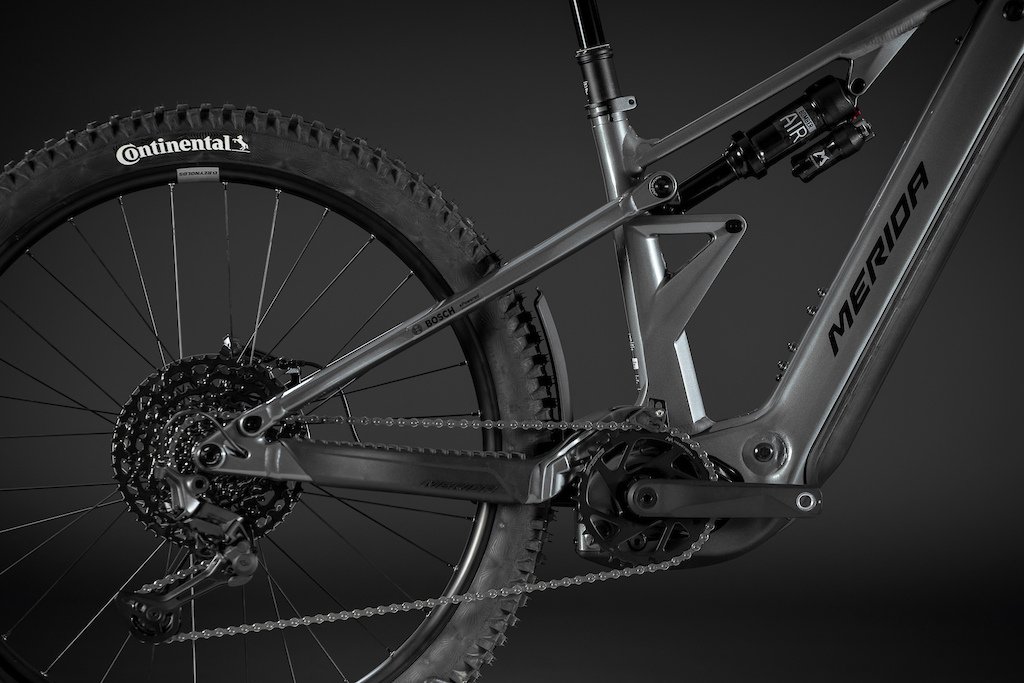

Frame Engineering and Cost Strategy
MERIDA revised production methods to reduce manufacturing overhead.
Key changes

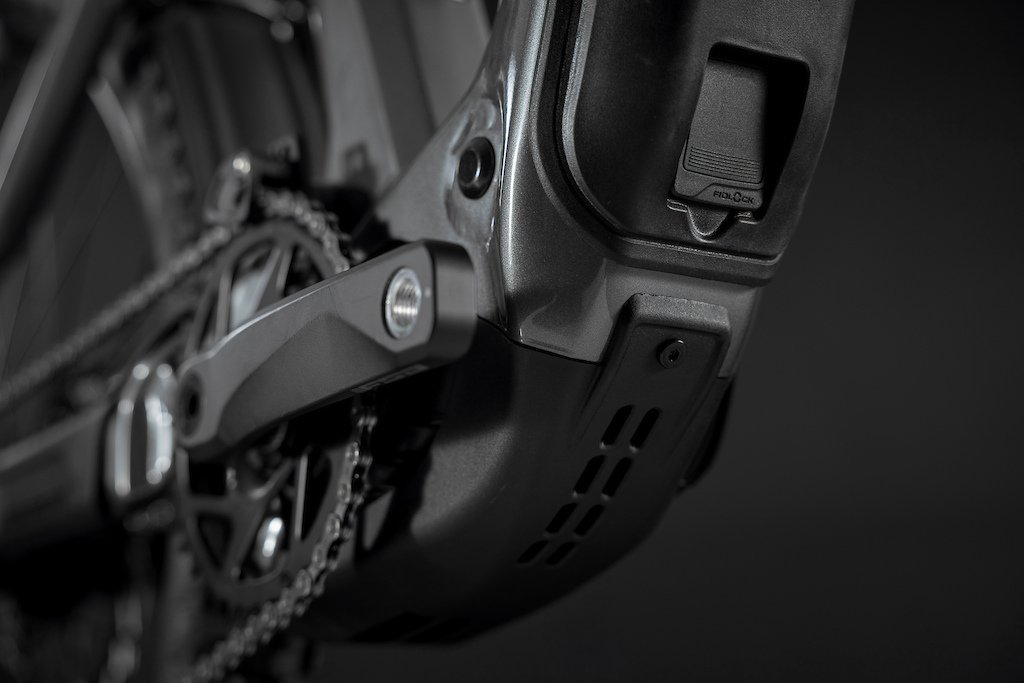

- Single-piece cast motor mount and downtube
- Robot laser cutting for size-specific finishing
- One-piece cast seat tube and upper pivot section
Impact
- Fewer welds
- Reduced alignment steps
- Lower production time
Result
- Lower retail pricing
- Preserved structural integrity
- Lifetime warranty retention
Geometry and Handling
The ETMO uses the AGILOMETER sizing concept. Riders select reach independently from seat tube height.
Geometry highlights
- Low standover across sizes
- Shorter seat tubes for easier mounting
- Head angle: 65° on 160 mm models
- Seat tube angle: 78.5°
- Chainstay length: 446 mm
Handling outcomes
- Improved climbing stability
- Reduced front-wheel lift on steep grades
- Predictable cornering behavior
- Accessible ride feel for newer riders
Component Standards and Maintenance
MERIDA avoids proprietary interfaces.
Standards used
- SRAM UDH derailleur hanger
- Boost axle spacing
- Standard headsets
Compatibility
- SRAM T-Type direct-mount transmissions
Maintenance benefits
- Easier part replacement
- Wider component availability
Ride-Focused Details
Performance-oriented refinements appear across sizes.
Notable features
- 160 mm crank arms for ground clearance
- Size-matched fixed-travel dropper posts
- Dropper range: 150 mm to 230 mm
- EXPERT TR grips with dual-texture pattern
Pricing and Range Structure
Eight models form the ETMO lineup.
Entry model
- ETMO 400
- 140 mm travel
- Bosch PX
- 540 Wh battery
- X-Fusion suspension
- £3,650 / €4,380
Top model
- ETMO 800
- 160 mm travel
- Bosch CX
- 800 Wh battery
- Marzocchi suspension
- Bomber Z fork with 38 mm stanchions
- £5,250 / €6,300
Target Rider Profile
The ETMO suits:
- Riders entering e-MTBs
- Trail riders seeking long travel
- Buyers prioritizing Bosch systems
- Users valuing standard components
